PlasmaMLPALLASRunAction Class Reference

Defines the run-level actions and statistics handling for the PALLAS simulation. More...

#include <PlasmaMLPALLASRunAction.hh>

Inheritance diagram for PlasmaMLPALLASRunAction:

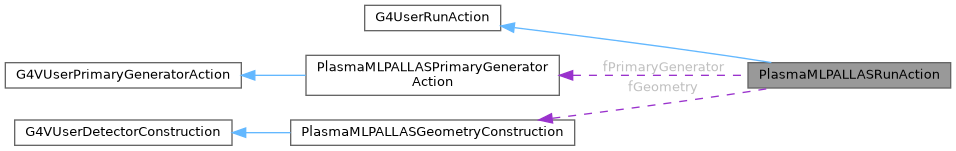

Collaboration diagram for PlasmaMLPALLASRunAction:

Public Member Functions
	PlasmaMLPALLASRunAction (const char *fileName, size_t nEventsGenerated, G4bool multithreaded)
	Constructor.
	~PlasmaMLPALLASRunAction ()
	Destructor.
void	BeginOfRunAction (const G4Run *run) override
	Called at the start of each run.
void	EndOfRunAction (const G4Run *run) override
	Called at the end of each run.
void	UpdateStatisticsGlobalInput (RunTallyGlobalInput)
void	UpdateStatisticsInput (RunTallyInput)
void	UpdateStatisticsQuadrupoles (RunTallyQuadrupoles)
void	UpdateStatisticsHorizontalColl (RunTallyCollimators)
void	UpdateStatisticsVerticalColl (RunTallyCollimators)
void	UpdateStatisticsBSYAG (RunTallyYAG)
void	UpdateStatisticsBSPECYAG (RunTallyYAG)
void	SetPrimaryGenerator (PlasmaMLPALLASPrimaryGeneratorAction *gen)
	Set the primary generator reference.
void	SetGeometry (PlasmaMLPALLASGeometryConstruction *geom)
	Set the geometry reference.

Static Public Member Functions
template<typename T >
static void	UpdateStatistics (T &stats, const T &newStats, TTree *tree)
	Generic template to update cumulative statistics in a ROOT tree.

Protected Attributes
PlasmaMLPALLASPrimaryGeneratorAction *	fPrimaryGenerator = nullptr
	Primary generator reference.
PlasmaMLPALLASGeometryConstruction *	fGeometry = nullptr
	Geometry reference.

Detailed Description

Defines the run-level actions and statistics handling for the PALLAS simulation.

Manages run-level actions, statistics, and ROOT output.

Author

Arnaud HUBER huber.nosp@m.@lp2.nosp@m.ib.in.nosp@m.2p3..nosp@m.fr - Alexei SYTOV sytov.nosp@m.@inf.nosp@m.n.it

Date

2025

Copyright

PALLAS Project - GEANT4 Collaboration

This header declares the PlasmaMLPALLASRunAction class, which inherits from Geant4's G4UserRunAction to manage actions at the beginning and end of each run. It handles:

• Collection and storage of run-wide statistics
• ROOT file and tree creation for data output
• Synchronization in multithreaded runs
• Coordination with primary generator and geometry configuration

The associated RunTallyGlobalInput struct stores simulation configuration parameters and beamline element settings for the entire run.

Data recorded here typically includes:

• Initial beam parameters
• Magnet gradients and lengths
• Detector and collimator configurations
• Collected measurements from various beamline elements

Note

This class interacts closely with:

• PlasmaMLPALLASPrimaryGeneratorAction
• PlasmaMLPALLASGeometryConstruction
• Event-level statistics classes such as RunTallyQuadrupoles

Constructor & Destructor Documentation

PlasmaMLPALLASRunAction()

PlasmaMLPALLASRunAction::PlasmaMLPALLASRunAction	(	const char *	fileName,
		size_t	nEventsGenerated,
		G4bool	multithreaded
	)

Constructor.

Parameters

fileName	Base name for ROOT output file
nEventsGenerated	Number of events to process
multithreaded	True if running with multithreading

~PlasmaMLPALLASRunAction()

PlasmaMLPALLASRunAction::~PlasmaMLPALLASRunAction

(

)

Destructor.

Member Function Documentation

BeginOfRunAction()

void PlasmaMLPALLASRunAction::BeginOfRunAction ( const G4Run *  aRun )

override

Called at the start of each run.

Called at the start of each run to set up ROOT output structures and initialize state.

Parameters

aRun	Pointer to the current G4Run

EndOfRunAction()

void PlasmaMLPALLASRunAction::EndOfRunAction ( const G4Run *  aRun )

override

Called at the end of each run.

Called at the end of each run to write collected data to the ROOT file and clean up.

Parameters

aRun	Pointer to the current G4Run

SetGeometry()

void PlasmaMLPALLASRunAction::SetGeometry

(

PlasmaMLPALLASGeometryConstruction *

geom

)

Set the geometry reference.

SetPrimaryGenerator()

void PlasmaMLPALLASRunAction::SetPrimaryGenerator

(

PlasmaMLPALLASPrimaryGeneratorAction *

gen

)

Set the primary generator reference.

UpdateStatistics()

template<typename T >

void PlasmaMLPALLASRunAction::UpdateStatistics ( T &  stats, const T &  newStats, TTree *  tree  )

static

Generic template to update cumulative statistics in a ROOT tree.

Thread-safe update of statistics and ROOT tree filling.

Template Parameters

T	Type of the statistics structure

Parameters

stats	Destination statistics object (persistent in the run)
newStats	Source statistics (new values)
tree	ROOT tree to fill

UpdateStatisticsBSPECYAG()

void PlasmaMLPALLASRunAction::UpdateStatisticsBSPECYAG

(

RunTallyYAG

a

)

UpdateStatisticsBSYAG()

void PlasmaMLPALLASRunAction::UpdateStatisticsBSYAG

(

RunTallyYAG

a

)

UpdateStatisticsGlobalInput()

void PlasmaMLPALLASRunAction::UpdateStatisticsGlobalInput

(

RunTallyGlobalInput

a

)

UpdateStatisticsHorizontalColl()

void PlasmaMLPALLASRunAction::UpdateStatisticsHorizontalColl

(

RunTallyCollimators

a

)

UpdateStatisticsInput()

void PlasmaMLPALLASRunAction::UpdateStatisticsInput

(

RunTallyInput

a

)

UpdateStatisticsQuadrupoles()

void PlasmaMLPALLASRunAction::UpdateStatisticsQuadrupoles

(

RunTallyQuadrupoles

a

)

UpdateStatisticsVerticalColl()

void PlasmaMLPALLASRunAction::UpdateStatisticsVerticalColl

(

RunTallyCollimators

a

)

Member Data Documentation

fGeometry

PlasmaMLPALLASGeometryConstruction* PlasmaMLPALLASRunAction::fGeometry = nullptr

protected

Geometry reference.

fPrimaryGenerator

PlasmaMLPALLASPrimaryGeneratorAction* PlasmaMLPALLASRunAction::fPrimaryGenerator = nullptr

protected

Primary generator reference.

---

The documentation for this class was generated from the following files:

• include/PlasmaMLPALLASRunAction.hh
• src/PlasmaMLPALLASRunAction.cc
